What's in the box? Parts List and SKUs for Every Forward Education Kit
Use this page to check exactly what should be in a kit — handy when you're unboxing, doing an end-of-term inventory, or working out what needs replacing.
Each product below has its own bill of materials (BoM): the list of every part in the box and how many of each you should find. Quantities are per single kit, so multiply by the pack size if you bought a class pack.
A quick note on terms: the Breakout Board is the small circuit board that your micro:bit slots into. It carries the battery and the ports that all the sensors, motors and pumps plug into.
Most Forward Education kits require a micro:bit V2, and unless the variant name says "with micro:bit," one is not included.
Class packs contain multiples of the single kit and nothing else. A class pack of 15 is 15 complete single kits — there are no extra parts, guides or storage items inside, so the parts lists below apply to every kit in the pack. Bundles are different: they deliberately add other products (micro:bits, CHARGE battery packs, a charging station) and are listed separately at the end.
Quick reference: Active products, variants and SKUs
| Product family | Variant | SKU |
|---|---|---|
| Coding for Good Kit | Coding for Good Kit (single) | FE-01-2101 |
| Coding for Good Kit | 10-pack | FE-01-2111 |
| Coding for Good Kit | Class Pack (15) | FE-01-2115 |
| Climate Action Kit | Climate Action Kit V2 – Full Kit | FE-01-0101 |
| Climate Action Kit | Class Pack (10) | FE-01-0117 |
| Climate Action Kit | Class Pack (15) | FE-01-0110 |
| Climate Action Kit | micro:bit Bundle | FE-01-0222 |
| Climate Action Kit | Sample Kit | FE-01-0105 |
| Climate Action Kit | Sample Kit with micro:bit V2 | FE-01-1105 |
| Smart Solar Energy Kit | Without micro:bit (single) | FE-01-0802 |
| Smart Solar Energy Kit | Class Pack (10) | FE-01-0812 |
| Smart Solar Energy Kit | Class Pack (15) | FE-01-0822 |
| Smart Solar Energy Kit | With micro:bit (single) | FE-01-0832 |
| Smart Solar Energy Kit | With micro:bit, 15-pack | FE-01-0852 and FE-01-0835 |
| Smart Hydroponics Kit | Smart Hydroponics Kit (single) | FE-01-0501 |
| CHARGE for micro:bit | Without micro:bit | FE-01-0302 |
| CHARGE for micro:bit | With micro:bit (CHARGE micro:bit Starter Kit) | FE-01-0301 |
| CHARGE for micro:bit | 10-Pack | FE-01-0312 |
| CHARGE for micro:bit | 10-Pack with micro:bit | FE-01-0311 |
| CHARGE for micro:bit | 15-Pack | FE-01-0352 |
| CHARGE for micro:bit | 15-Pack with micro:bit | FE-01-0351 |
| CodeCTRL for micro:bit | CodeCTRL Remote Coding Device (single) | FE-01-0702 |
| CodeCTRL for micro:bit | Class Pack (10) | FE-01-0712 |
| CodeCTRL for micro:bit | Class Pack (15) | FE-01-0722 |
| Smart Soldering Kit: Traffic Light | Single kit | FE-01-0602 |
| Smart Soldering Kit: Traffic Light | Class Pack (10) | FE-01-1602 |
| Robotics Kit Storage Cart | Forward Education Storage Cart | FE-01-1049 |
| Robotics Kit Storage Cart | Storage Cart + Charging Station | FE-01-1048 |
Bundles (kits plus extras)
Unlike class packs, bundles combine several products in one order. The contents are in the product name:
| Bundle | SKU |
|---|---|
| Coding for Good Starter Bundle (15 kits + micro:bits) | FE-B1-9902 |
| Coding for Good Power Bundle (15 kits + micro:bits + charging station) | FE-B1-9922 |
| Coding for Good Ultimate Bundle (15 kits + micro:bits + CHARGE) | FE-B1-9901 |
| CHARGE Starter Bundle (15 kits/CHARGEs + micro:bits) | FE-B1-9904 |
| CHARGE Power Bundle (15 kits/CHARGEs + micro:bits + charging station) | FE-B1-9924 |
| Smart Solar Energy Starter Bundle (15 kits/CHARGEs + micro:bits) | FE-B1-9923 |
| Smart Solar Energy Power Bundle (15 kits/CHARGEs + micro:bits + charging station) | FE-B1-9903 |

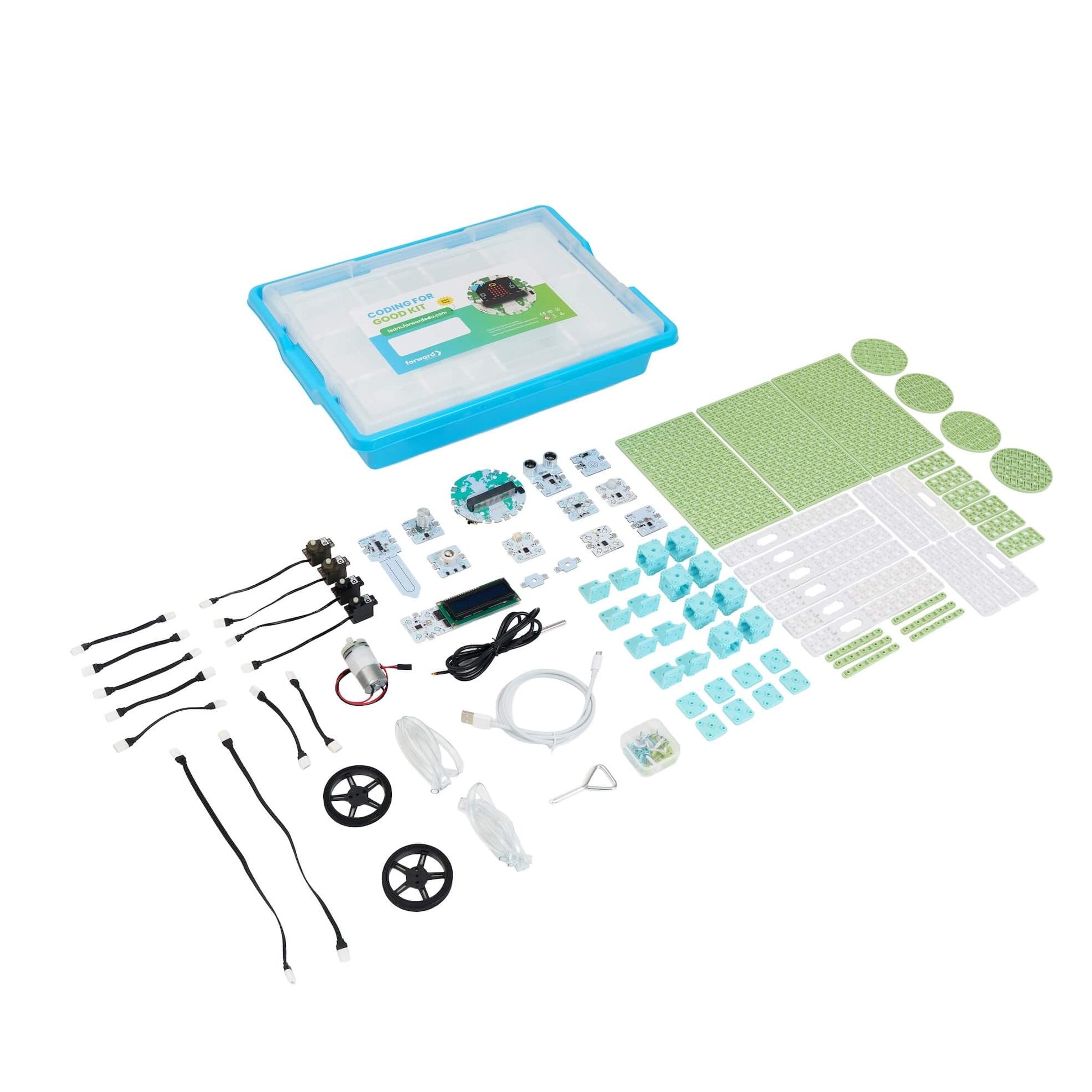

Coding for Good Kit
This is the newest version of our flagship coding and robotics kit. It uses the same plug-and-play ecosystem as the Climate Action Kit and works with all Climate Action Kit lessons.
SKU: FE-01-2101 · 10-pack: FE-01-2111 · Class Pack (15): FE-01-2115
| Item | Qty |
|---|---|
| Kit Contents Card | 1 |
| Breakout Board with Battery | 1 |
| Moisture Sensor | 1 |
| Touch Sensor | 1 |
| Solar Sensor | 1 |
| Sonar Sensor | 1 |
| Line Follower with Ball & Caster | 1 |
| Rotary Dial | 1 |
| LED Light | 1 |
| Colour Sensor | 1 |
| PIR Sensor | 1 |
| LCD Screen | 1 |
| Temperature Probe Sensor | 1 |
| Continuous Servo Motor | 2 |
| Positional Servo Motor | 2 |
| Peristaltic Water Pump & Tubing | 1 |
| Base Plate | 3 |
| Long Frame | 6 |
| Medium Frame | 4 |
| Medium Frame with Servo Holes | 2 |
| Small Frame | 6 |
| Thin Frame | 6 |
| Circle | 2 |
| Cube Connector | 8 |
| Corner Connector | 8 |
| Back-to-Back Connector | 8 |
| Long Cable Connector | 2 |
| Short Cable Connector | 7 |
| Cable Extender | 2 |
| Wheel | 2 |
| USB Cable | 1 |
| Package of Butterfly Clips | 1 |
Source: Coding for Good Kit

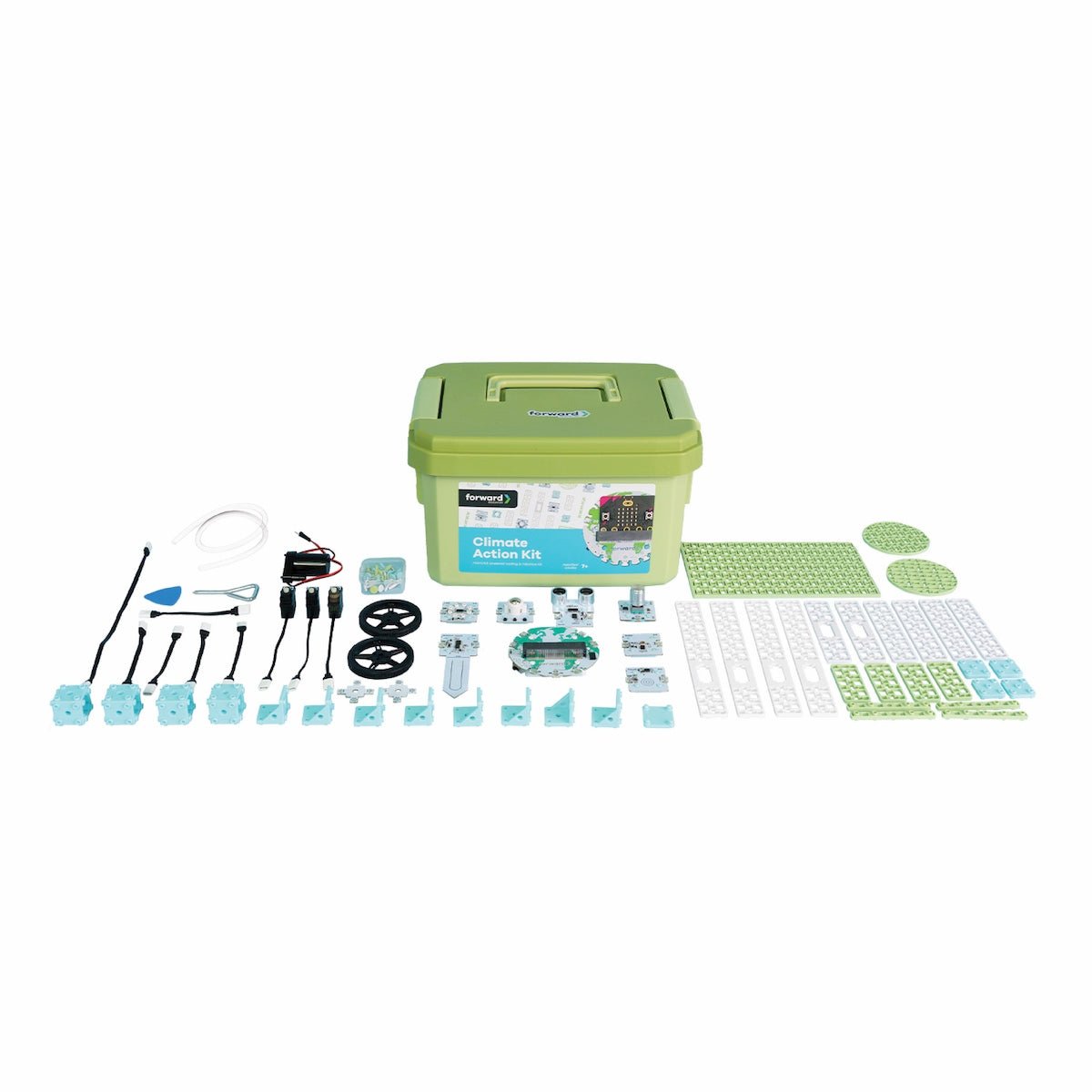

Climate Action Kit
SKU: FE-01-0101 · Class Pack (10): FE-01-0117 · Class Pack (15): FE-01-0110 · micro:bit Bundle: FE-01-0222
| Item | Qty |
|---|---|
| Getting Started Guide | 1 |
| Breakout Board with Battery | 1 |
| Moisture Sensor | 1 |
| Touch Sensor | 1 |
| Solar Sensor | 1 |
| Sonar Sensor | 1 |
| Infrared Sensor with Ball & Caster | 1 |
| Rotary Dial | 1 |
| LED Light | 1 |
| Continuous Servo Motor | 2 |
| Positional Servo Motor | 1 |
| Water Pump & Tubing | 1 |
| Base Plate | 1 |
| Long Frame | 4 |
| Medium Frame | 4 |
| Medium Frame with Servo Holes | 2 |
| Small Frame | 4 |
| Thin Frame | 4 |
| Circle | 2 |
| Cube Connector | 4 |
| Corner Connector | 4 |
| Back-to-Back Connector | 4 |
| Component Backing Connector | 8 |
| Long Cable Connector | 2 |
| Short Cable Connector | 5 |
| Cable Extender | 2 |
| Wheel | 2 |
| USB Cable | 1 |
| Building Block Removal Tool | 1 |
| Package of Butterfly Clips | 1 |
| Screwdriver | 1 |
Source: Climate Action Kit

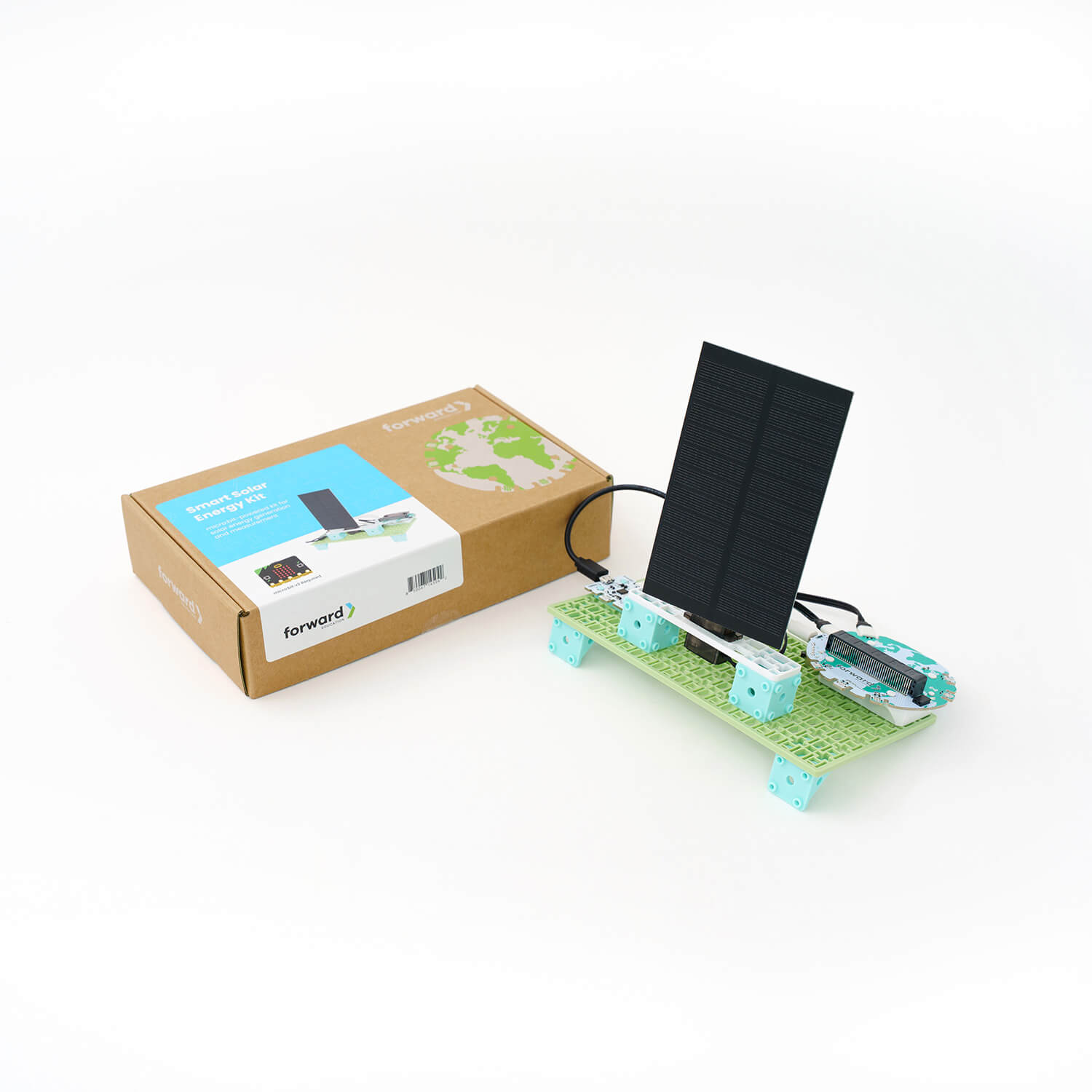

Smart Solar Energy Kit
Build a working miniature solar panel that can charge a low-power USB device and report voltage and current back to MakeCode.
Without micro:bit: FE-01-0802 · Class Pack (10): FE-01-0812 · Class Pack (15): FE-01-0822
With micro:bit: FE-01-0832 · 15-unit pack: FE-01-0852 / FE-01-0835
| Item | Qty |
|---|---|
| Breakout Board | 1 |
| Energy Sensor | 1 |
| Solar Panel | 1 |
| Positional Servo Motor | 1 |
| Connector Cable (250 mm) | 1 |
| USB Cable | 1 |
| Base Plate | 1 |
| Small Frame Building Block | 1 |
| Medium Frame w/ Servo Building Block | 1 |
| Cube Connector | 2 |
| Corner Connector | 2 |
Not included: a micro:bit V2 (unless you bought the "with micro:bit" variant) and a load device such as a small USB light.
Source: Smart Solar Energy Kit
Smart Hydroponics Kit
SKU: FE-01-0501
This is a different product from the older Smart Farming Kit listed above. The product page lists the Main Hydroponics Unit (7 L tank, cover, support posts and plant support rods) plus the sensors, grow light and robotic components needed to automate water levels, light cycles and pH testing — the kit uses the peristaltic pump and a float sensor, and needs a micro:bit V2.
Nutrients and pH up/down buffer are consumables and are not part of the kit — they're bought separately.
Source: Smart Hydroponics Kit
CHARGE for micro:bit
CHARGE is our rechargeable, wearable battery pack for micro:bit. It comes in two variants, each also sold in 10- and 15-unit class packs.
Variant: CHARGE without micro:bit — SKU: FE-01-0302 · 10-Pack: FE-01-0312 · 15-Pack: FE-01-0352
| Item | Qty |
|---|---|
| CHARGE for micro:bit (rechargeable battery & housing) | 1 |
| JST Connector | 1 |
| Velcro Strap (25 cm) | 1 |

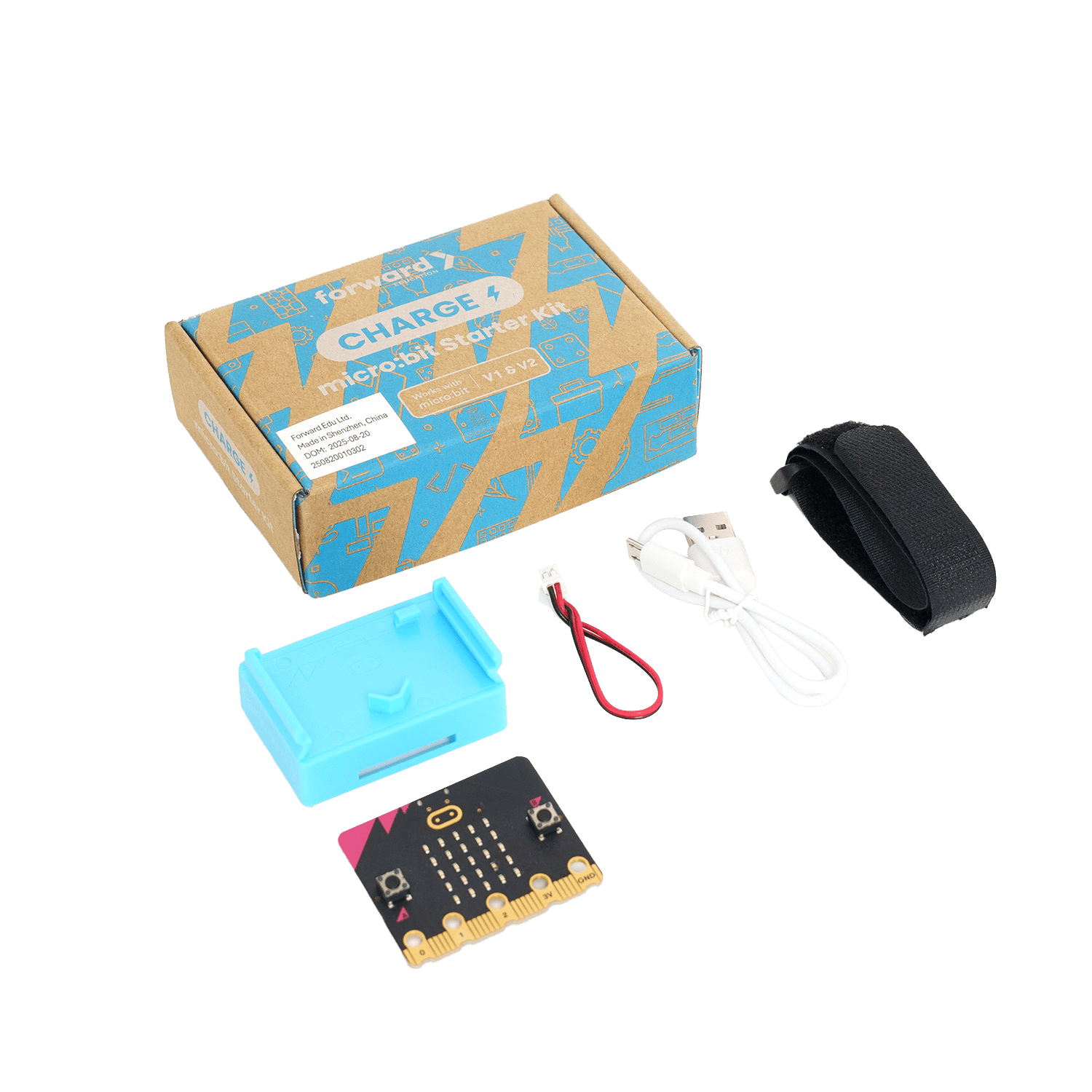

Variant: CHARGE with micro:bit (CHARGE micro:bit Starter Kit) — SKU: FE-01-0301 · 10-Pack: FE-01-0311 · 15-Pack: FE-01-0351
| Item | Qty |
|---|---|
| micro:bit V2 | 1 |
| CHARGE for micro:bit (rechargeable battery & housing) | 1 |
| JST Connector | 1 |
| Velcro Strap (25 cm) | 1 |
| USB Cable | 1 |
Campaign and programme-specific versions also exist: CHARGE Rechargeable Battery Pack | AI Forward Campaign (FE-01-0991), the same with micro:bit (FE-01-0992), and the 10-Pack with micro:bit – Digital Moment Pack (FE-01-9311).
Source: CHARGE for micro:bit
CodeCTRL for micro:bit
CodeCTRL Remote Coding Device — SKU: FE-01-0702 · Class Pack (10): FE-01-0712 · Class Pack (15): FE-01-0722
Smart Soldering Kit: Traffic Light
SKU: FE-01-0602 · Class Pack (10 units): FE-01-1602
Storage and charging
| Item | SKU |
|---|---|
| Forward Education Storage Cart | FE-01-1049 |
| Forward Education Storage Cart + Charging Station | FE-01-1048 |
| Forward Education Charging Station | FE-01-1051 |
| Forward Education Charging Station – Case (5) | FE-01-1551 |
micro:bits, accessories and other products
These are sold alongside the kits.
| Product | SKU |
|---|---|
| micro:bit V2 Go-Pack | FE-01-0201 |
| micro:bit V2 Single Board – Boxed | FE-01-0202 |
| micro:bit V2 Single Board – Bulk | FE-01-0232 |
| micro:bit V2 Club Pack | FE-01-0213 |
| micro:bit USB Cable – Black | FE-01-0203 |
| micro:bit USB Cable – Green | FE-01-0204 |
| USB-C to Micro Cable, White, 1 m | FE-01-0207 |
Class packs and sample kits
A class pack contains multiples of the individual kit and nothing more — for example, the Wind Turbine Kit Class Pack (FE-01-0114) is 15 Wind Turbine Kits, and the Climate Action Kit Class Pack (15) (FE-01-0110) is 15 Climate Action Kits. There is no extra storage, guide or spare-parts item inside.
Sample kits are single-project demo kits:
| Sample kit | SKU |
|---|---|
| Sample Climate Action Kit | FE-01-0105 |
| Sample Climate Action Kit with micro:bit V2 | FE-01-1105 |
| Smart Farming, Sample Kit | FE-01-0118 |
| Smart Farming, Sample Kit with micro:bit | FE-01-0122 |
| Wind Turbine, Sample Kit | FE-01-0119 |
| Wind Turbine, Sample Kit with micro:bit | FE-01-0121 |
| Smart Vehicle, Sample Kit with micro:bit | FE-01-0123 |
Previous kits
Smart Farming Kit
A smaller, single-project kit for building a hydroponics-style watering system with a grow light.
SKU: FE-01-0103 · Class Pack: FE-01-0113
| Item | Qty |
|---|---|
| Getting Started Guide | 1 |
| Breakout Board with Battery | 1 |
| Moisture Sensor | 1 |
| LED Light | 1 |
| Water Pump & Tubing | 1 |
| Base Plate | 1 |
| Long Frame | 3 |
| Cube Connector | 2 |
| Corner Connector | 2 |
| Back-to-Back Connector | 2 |
| Component Backing Connector | 2 |
| Long Cable Connector | 2 |
| Short Cable Connector | 1 |
| USB Cable | 1 |
Wind Turbine Kit
SKU: FE-01-0104 · Class Pack (15): FE-01-0114
Note there is also a separate Smart Wind Turbine Kit (FE-01-0901, Class Pack (10) FE-01-0911, Class Pack (15) FE-01-0921) — please confirm whether this is a different product and add its parts list too.
Smart Vehicle Kit
SKU: FE-01-0102 · Class Pack (15): FE-01-0112
Something missing from your kit?
If you've checked your kit against the list above and a part is missing or damaged, see the help centre article "A piece is missing from my kit — how do I get a replacement?", or contact our support team. Individual sensors, motors, Breakout Boards and building blocks can also be bought separately as replacements.
